machinery for all your sewing, stitching or cutting projects

Cylinder Arm Sewing Machines



335 B    with 'U' Table System $1565.00The artisan® model 335 B is a Cylinder Bed, Big "M" sized Bobbin, Medium/Heavy Duty Walking Foot, Compound Needle Feed, (Unison Feed) Lockstitch Sewing Machine with a Large Thread Capacity, Big Size, Rotating Hook Mechanism. artisan® model 335 B series sewing machines includes a lever operated stitch length mechanism with a reverse feed regulator for back tacking and stitching in reverse. Some additional features of the 335 B include a semi-automatic lubrication system, a synchronized binder mechanism (folder optional) and the machine sews thread from as small as size z-46 up to a large diameter size of z-207 in the needle with up to a maximum size of z-138 in the bobbin.artisan® model 335 B machines sew a beautiful equal distant stitch length on all types of leathers or fabrics as light as a sheet or two of paper and up to just over 38" thick of leather or fabrics.

The complete sewing machine as shown in the photograph to the left includes ourartisan® exclusive ACF-625 Digital Electronic A.C. Servo Motor Drive System including adjustable "T" style steel legs with locking caster wheels. We selected a "U" style, USA manufactured laminated plywood table top for stitching inside purses, bags, and items with gussets or just about any style of small to medium weigh project. Our 24 LED magnetic gooseneck lamp, a storage drawer and additional accessories like Schmetz brand needles, bobbins, a spool of high performance thread, tools, some spare parts and operators manuals are included with each shipment. Replacement spare parts are similar to the German manufactured Pfaff model 335 series sewing machines. Theartisan® model 335 B is also available mounted on theartisan® Ped-500 as shown below to the left. We manufacture an optional "Work Platform" which transforms the cylinder bed surface of the sewing machine into a flat bed surface converting the cylinder bed style into a flat bed style sewing machine. The "work platform is an option worth having as well as several additional and optional accessories such as a quality upper mounted flip up/flip down, adjustable roller edge guide along with various styles of different presser feet for sewing zippers, welting, piping and a seam binding folder and additional attachments are also available fromartisan®
Please contactartisan® for additional information.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 23). Leather: 135 x 16 TRI Size(14 to 23)

Optional 335 Roller Edge Guide available.$75.00
Optional Work Platform available.$100.00





NEW

335 B SAVR      Space Saving Economical Pedestal Introductory Sale End 11/17/2017 Telephone and Internet Orders Only $1195.00 The sameartisan® model 335 B Walking Foot Cylinder Bed, Compound Needle Feed, Lockstitch Sewing Machine head with a Big size "M" Bobbin and side loading Rotating Hook as the 335 B BT and 335 B series machines. A Lever operated stitch length regulator with Reverse Feed but with a HAND Operated Presser Foot lifting mechanism not a foot operated devise and a manual lubrication system. 335 B machines include a synchronized binder mechanism as other 335 series machines. The 335 B machine sews as light as a sheet of paper and up to a full 38" thickness of Leather, Fabrics, Canvas, Webbing, Technical Fabrics and all Upholstery type fabrics. The cylinder bed walking foot machine is designed to sew threads from a light weight size of z-46 up to medium heavy thread size z-207 in the needle. Spare parts are interchangeable parts with Pfaff 335 models.

Theartisan® model 335 B SAVR series Sewing Machine includes our exclusive model ACF-680, 1.1 hp High Torque digital Servo Motor with an electronic, foot operated, speed controller placed on the floor for complete speed control. The machine and motor system is operator controllable and stitches slowly, stitch by stitch and the sewing speed is also variable up to the sewing speed of your choosing. Assembly is required. The economicalartisan® model 335 B SAVR is available K/D for shipping purposes. Standard 1 year warranty.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 23). Leather: 135 x 16 TRI Size(14 to 23)

Optional SAVR pedestal assembly $125.00
Optional ADR-124 LED Magnetic Gooseneck Lamp $  21.00
Optionalartisan® Lifetime warranty Parts and Labor $150.00
Optional Flip up, Flip down adjustable roller edge guide $  75.00
Optional Work Platform available $125.00
Additional Bobbin Case $  19.50
Additional Bobbins (10 pack) $  18.00
Additional SCHMETZ Needle (10 pack) $    4.40





335 B Ped 500 $1650.00









335 B BT      Transportable $1450.00 Theartisan® s-335B BT is a newly introduced model. The machine is designed as a table top, transportable stitching machine. The complete machine is portable and designed to place on top of a workshop bench, a kitchen table or at a trade show, rodeo, or out in the boonies. It can even be plugged into the 12-volt system in your truck using an inverter or just about any 12 volt battery. The triple feed, walking foot, cylinder bed machine is designed for sewers to assemble or do repairing of all types of leather, canvas and webbing products. The 335 B series, big Bobbin machine is ideal for making bags, purses, chaps, chinks, holsters, knife sheaths, belts, watch bands, cell phone cases, day planners, book jackets and all manner of products made of leather or upholstery type fabrics. Some features of the new machine is that one can sew as thin as a couple of sheets of paper up to almost a 12 inch of leather or fabrics using light weight threads from size 33 up to very heavy thread, size 207. A flat bed work platform is easily added to convert the cylinder bed into a flat working surface.

artisan® uses the industry's most powerful 5.3 Nm torque, 1.1 hp Electronic Servo Motor producing 880 watts of power. Theartisan® ACF-680 motor system is extremely powerful and completely speed controllable. You can run the machine and stitch slowly, stitch by stitch and variable up to a fast 1800 rpm. The machine is well made up to the highest standards with interchangeable parts and will perform for generations.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 23). Leather: 135 x 16 TRI Size(14 to 23)

Optional BT Work Platform available.$125.00





TORO-3200 with "U" Table$2175.0012 12" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 910" of leather with up to size 415 bonded thread.

The completeartisan® sewing machine includes our exclusive 110 volt, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with "U" Style Table, Adjustable "T" Style Steel Legs including four lockable caster wheels, anartisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.

Recommended SCHMETZ brand Needle. Leather: 794 D Size(23 to 26)

Optional Work Platform available.$100.00

TORO-3200 BT$2175.0012 12" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 910" of leather with up to size 415 bonded thread.

The completeartisan® sewing machine includes our exclusive 110 volt, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with anartisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.

Recommended SCHMETZ brand Needle. Leather: 794 D Size(23 to 26)

TORO-3200 with PED 500$2195.0012 12" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 910" of leather with up to size 415 bonded thread.

The completeartisan® sewing machine includes our exclusive 110 volt, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with model EP Ped-500 Adjustable Pedestal Stand including four lockable caster wheels, anartisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.

Recommended SCHMETZ brand Needle. Leather: 794 D Size(23 to 26)

Optional Work Platform available.$100.00

TORO-3200 with PED 520$2150.0012 12" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 910" of leather with up to size 415 bonded thread.

The completeartisan® sewing machine includes our exclusive 110 volt, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with model Ped-520 Adjustable Pedestal Stand including four lockable caster wheels, anartisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories..

Recommended SCHMETZ brand Needle. Leather: 794 D Size(23 to 26)

Optional Work Platform available.$100.00

TORO-3000$1995.009" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 78" of leather with up to size 346 bonded thread.

The completeartisan® sewing machine includes our exclusive 110 volt, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with model EP Ped-500 Adjustable Pedestal Stand including four lockable caster wheels, anartisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.

Recommended SCHMETZ brand Needle. Leather: 794 D Size(23 to 26)

Optional Work Platform available.$100.00







TORO-4000 R with PED 500 $2395.0016 12" Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever type stitch length regulator with Reverse feed and a machine mounted bobbin re-winder. The TORO-4000 R will sew up to 78" of leather and sews bonded threads from size 138 up to size 346. Optional up to size 415 thread.

The 4000 R Stitcher is available with either anartisan® EP Ped-500 Adjustable Pedestal Stand or our heavier duty Deluxe Ped-600 Adjustable Pedestal Stand. Both units include our exclusive 110 volt, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor. Model EP Ped-500 Adjustable Pedestal Stand includes four lockable caster wheels, anartisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.

Recommended SCHMETZ brand Needle. Leather: 794 D Size(23 to 26)

Optional Work Platform available.$100.00

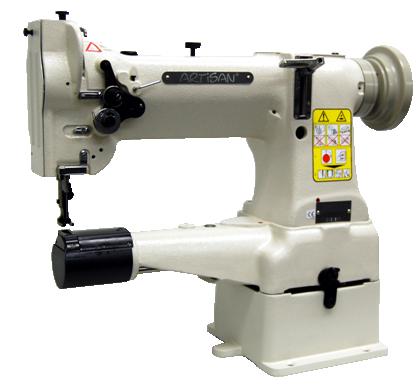

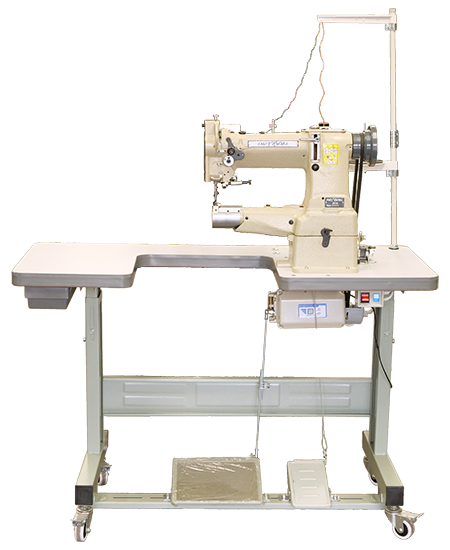

2618-1B$1995.00Cylinder Bed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with Big "M" size Bobbin and Rotating Hook, (Top loading mechanism). Features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic lubrication and sews up to 38" thickness.

The Complete sewing machine fromartisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Drive with adjustable "T" style Legs, "U" style plywood table top, or a Ped-500 drive unit, a 24 LED gooseneck lamp, drawer and accessories. Adjustable to stitch up to size z-207 threads.

Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(14 to 24)

2620-2B, 2620-2BL (Long Arm)$2400.00 / $3350.00Double Needle Cylinder Bed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with Large "U" size Bobbins and Rotating Hooks, (top loading). Features include a Safety Clutch mechanism, Dial type stitch length regulator, Reverse feed lever, semi-automatic lubrication and sews up to 38" thickness.

The Complete sewing machine fromartisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Drive with adjustable "T" style Legs, "U" style plywood table top, or a Ped-500 drive unit, a 24 LED gooseneck lamp, drawer and accessories. Adjustable to stitch up to size z-138 threads.

2620-2B Cylinder length aprox. 10". *
2620-2BL Long arm aprox. 24". *
* Measurement from needle bar to vertical arm

Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(14 to 24)

2698-1$1920.00Small diameter, 1.75" Cylinder Bed, Walking Foot, Needle Feed, ("Scuff" Feed) Lockstitch Sewing Machine, "L" size Bobbin and Rotating Hook, (End loading mechanism). Features include a synchronized binder mechanism, Lever stitch length regulator with Reverse feed. Semi-automatic lubrication and sews up to 516" thickness.

The Complete sewing machine fromartisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Ped-500 Pedestal Drive Unit or an adjustable "T" style Legs, "U" style plywood table top drive with a 24 LED gooseneck lamp, drawer and accessories. Adjustable to stitch up to size z-138 threads.

Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(12 to 23)

2698-2$1850.00Small diameter, 1.75" Cylinder Bed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Machine with "L" size Bobbin and Rotating Hook, (End loading mechanism). Lever stitch length regulator with Reverse feed. Semi-automatic lubrication and sews up to 516" thickness.

The Complete sewing machine fromartisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Ped-500 Pedestal Drive Unit or an adjustable "T" style Legs, "U" style plywood table top drive with a 24 LED gooseneck lamp, drawer and accessories. Adjustable to stitch up to size z-138 threads.

Recommended SCHMETZ brand Needle. Fabrics: 135 x 17 Size(12 to 23)

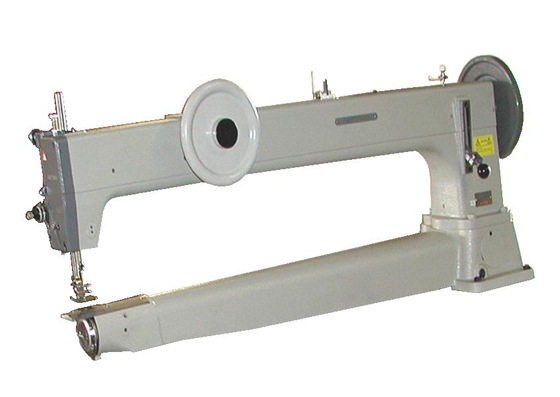

4011 P-37$8495.0037" Long Arm Cylinder Bed Drop Feed Lockstitch Sewing Machine. This machine sews up the arm towards the Hand wheel and in Reverse sews from the handwheel side towards the needle side. The 4011 has a large barrel Shuttle system and will sew up to 12" thickness with up to thread size 415. The TORO 4011 LA-37 Stitcher is available fromartisan® with our extra heavy duty cast iron Ped-700 Pedestal Stand which includes our exclusive 110 volt model ACF-625 Electronic A.C. Servo Motor, anartisan® two speed ball bearing SR-2 Speed (reducer) Controller, and anartisan® 24 LED low voltage gooseneck lamp system.

Recommended SCHMETZ brand Needle. Fabrics: 794 Size(18 to 27)
